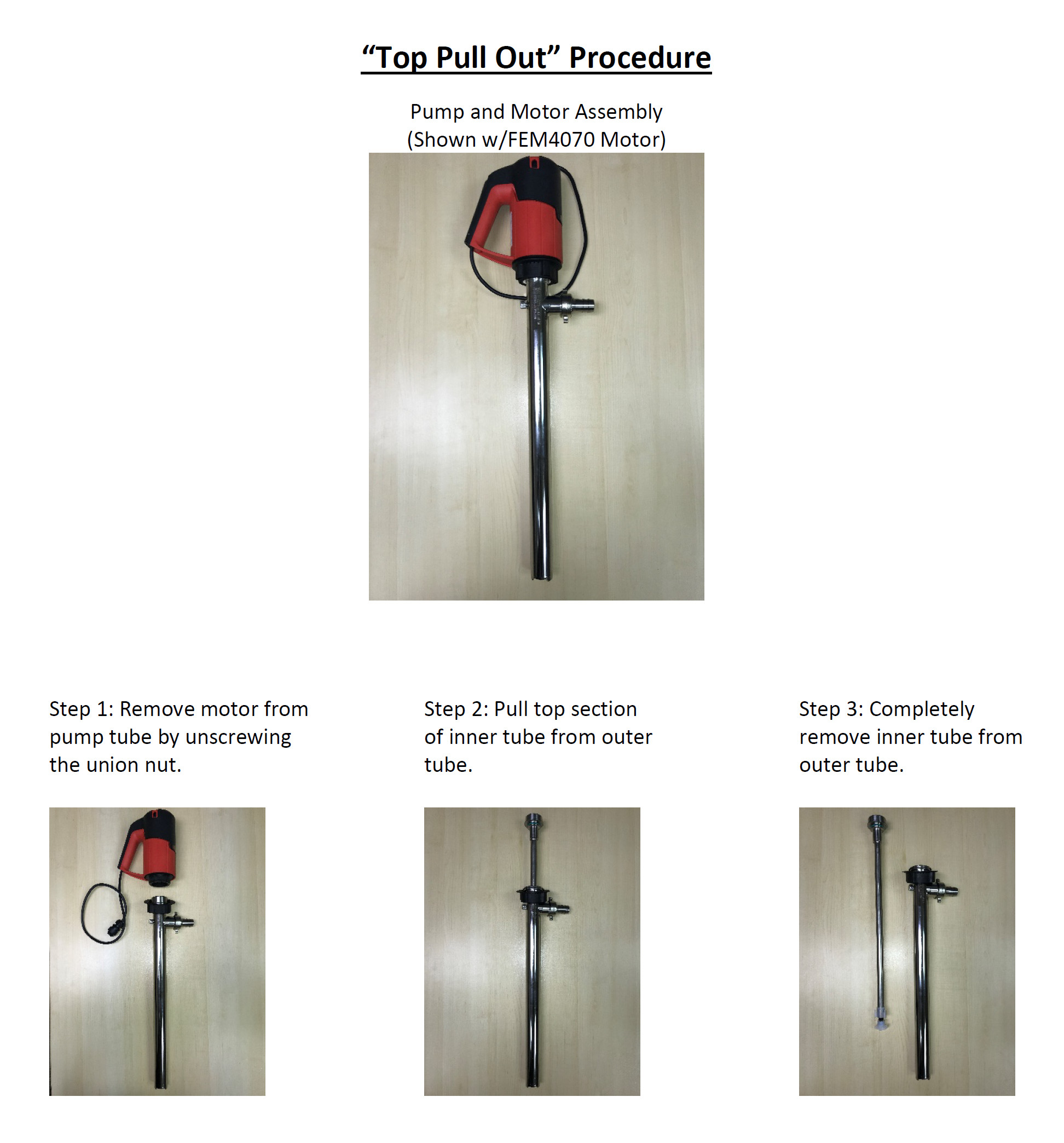

FLUX F430 Top Pull Out Design
-
Specs and Features
- Easy to clean between batches to prevent cross contamination
- Flow range from 3 GPM to 60 GPM
- Heads to 98 ft TDH
- Temperatures to 212 F
- Viscosity range 1-1000 cPs
- Available is 316SS, Polypropylene, PVDF, Aluminum, Hastelloy C
- Multiple motor options: air, electric, 12v, 24v, 1 or 3 ph, 50 or 60 Hz, variable speed
- ATEX models for flammable liquids when used with explosion-proof motors
- Externally mounted models for totes and tanks
- Lengths up to 118 inches
- Lightweight and portable
- FDA models available
- Discharge port options: hose barb, NPT, flange, cam lock, Tri-clamp
- F426 Mixing Pump and F425 liquid Saver models in top pull out design
- Elastomer options: Viton, EPDM, PTFE, FEP, FFKM(Kalrez)
