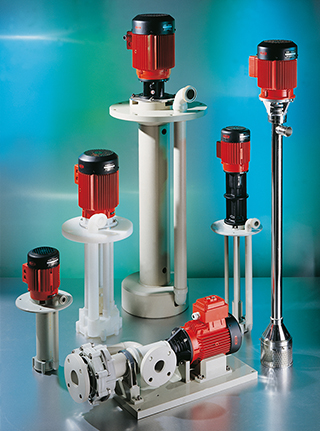

Centrifugal Immersion Pumps

  • Robust and reliable construction
  • Available in mechanically sealed or sealless versions
  • Models suitable for stationary or portable applications
  • Open, conical impeller and closed impeller design options
  • Horizontal mounting configuration available
  • Ability to run dry

Specifications

Centrifugal Immersion Pumps:

  • Flows to 326 GPM
  • Heads to 112 feet
  • Immersion lengths to 14 feet
  • Capable of handling up to 2,500 cPs

Materials of Construction
  • Wetted path: 316Ti Stainless Steel, Polypropylene and PVDF
  • Shaft: 316Ti Stainless Steel, Hastelloy C and PP/PVDF coated
  • Mechanical seal: Ceramic Oxide/SiC
  • Elastomers: FKM
